Clinical Applications of Mobile C-Arm Imaging Systems in Modern Surgery: From Orthopedics to Interventional Procedures

Clinical Applications of C-Arm X-Ray Imaging

• Clinical Applications of C-Arm X-Ray Imaging

  1、Orthopedic and Trauma Surgery

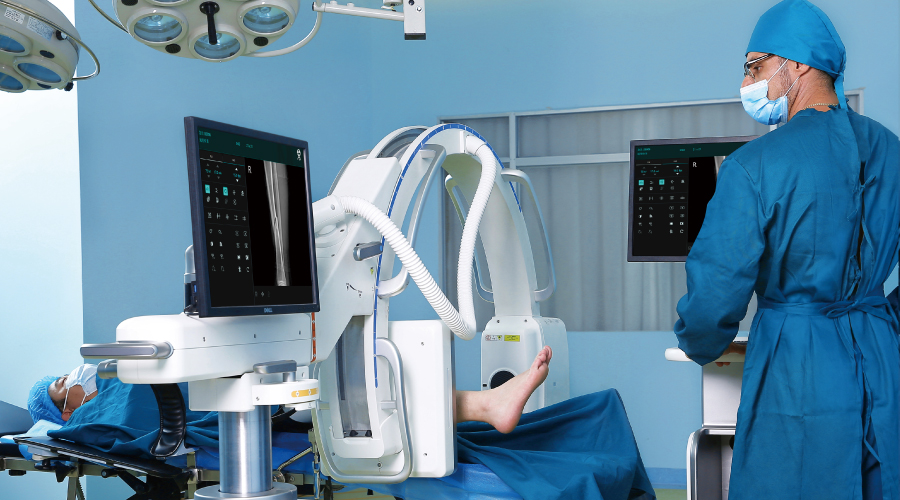

  Orthopedic procedures remain one of the most common applications for C-arm X-ray systems. In procedures such as internal fixation of fractures, joint replacement, and reduction of dislocations, surgeons use C-arms for real-time fluoroscopic imaging to assess fracture alignment and implant positioning, enabling rapid evaluation of reduction quality.









  2、Spine Surgery and Pain Management

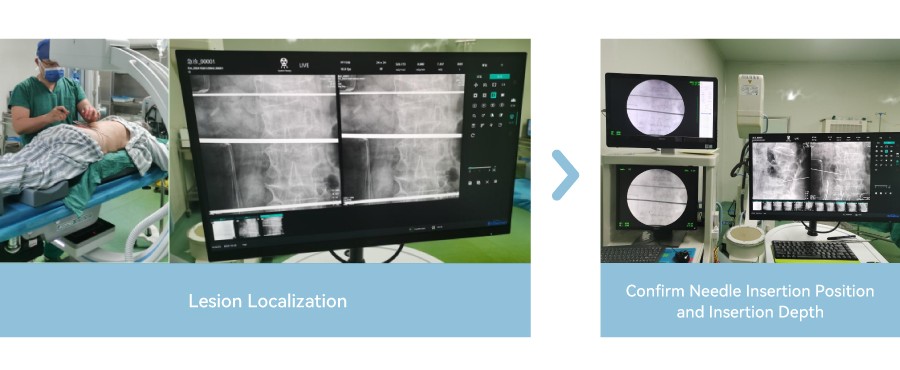

  In spine and pain management procedures, the mobile C-arm serves as an intraoperative navigation tool for minimally invasive interventions such as radiofrequency ablation (RFA) and percutaneous endoscopic lumbar discectomy (PELD), where precise lesion localization, needle guidance, and continuous fluoroscopic monitoring are required. Advanced CMOS X-ray technology, combined with X-ray image enhancement and X-ray image processing, enables clear visualization of anatomical landmarks, reduces motion artifacts, ensures accurate radiological positioning, and supports reliable continuous fluoroscopy.



  3、Hepatobiliary Surgery and Gynecology

  In hepatobiliary surgery, ERCP is a key minimally invasive treatment for common bile duct stones and biliary tumors, where mobile C-arm systems enable real-time visualization of biliary anatomy to support guidewire navigation, stone removal, and stent placement, improving accuracy and reducing procedural risk. In gynecology, C-arms are used in uterine fibroid embolization (UFE) and hysterosalpingography (HSG), where dynamic fluoroscopy provides real-time contrast tracking, precise catheter positioning, and intraoperative confirmation, enhancing procedural accuracy and visualization compared with static imaging.

  4、Urology Applications

  In urology, mobile C-arm systems are widely used in minimally invasive procedures such as renal stone surgery and sacral neuromodulation (SNM), where multi-angle, localized imaging is often required; compared with large DSA systems, mobile C-arm imaging systems offer greater flexibility and intraoperative maneuverability.









  5、 Interventional Radiology and DSA Procedures

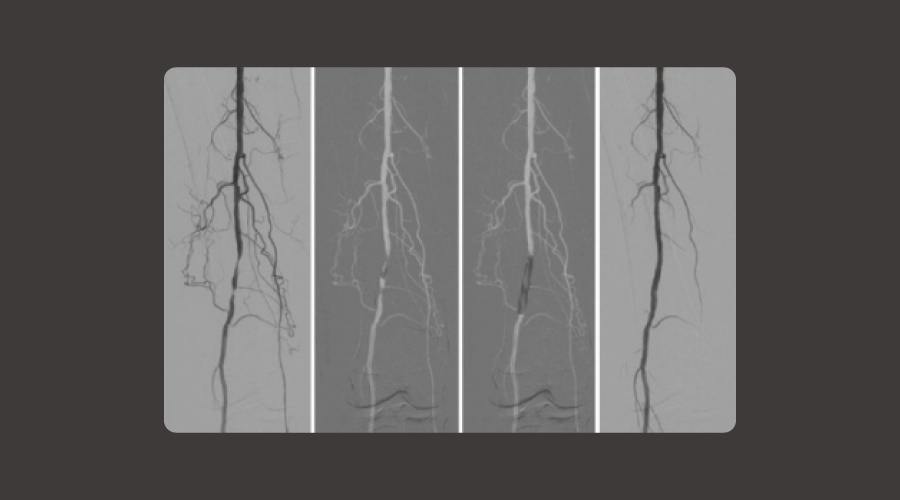

  Digital Subtraction Angiography (DSA) is the gold standard for vascular imaging, using digital subtraction technology to subtract bone and soft-tissue structures, producing clear, high-contrast vascular images. As mobile C-arm imaging systems become increasingly common in peripheral vascular interventions, equipped with an integrated DSA package, modern C-arm imaging systems can provide enhanced vascular visualization through digital subtraction angiography technology.

  The combination of advanced image processing, continuous fluoroscopy capability, and intelligent dose control allows physicians to observe vascular structures and lesions with exceptional clarity. For peripheral vascular interventions, accurate imaging directly contributes to procedural success and patient safety.

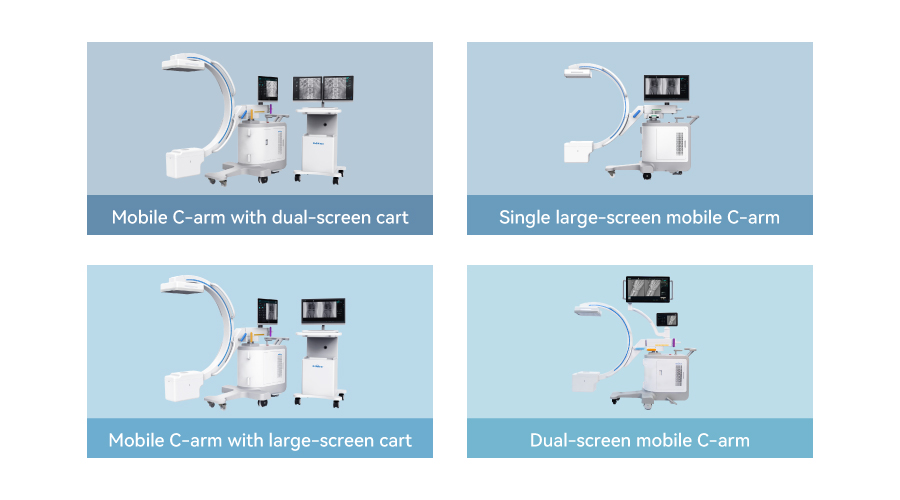

CompaX Series Mobile C-Arm Imaging System: Designed for the Toughest Clinical Demands

Conclusion
